Passive Gigabit PoE rackmount panel, 12 ports

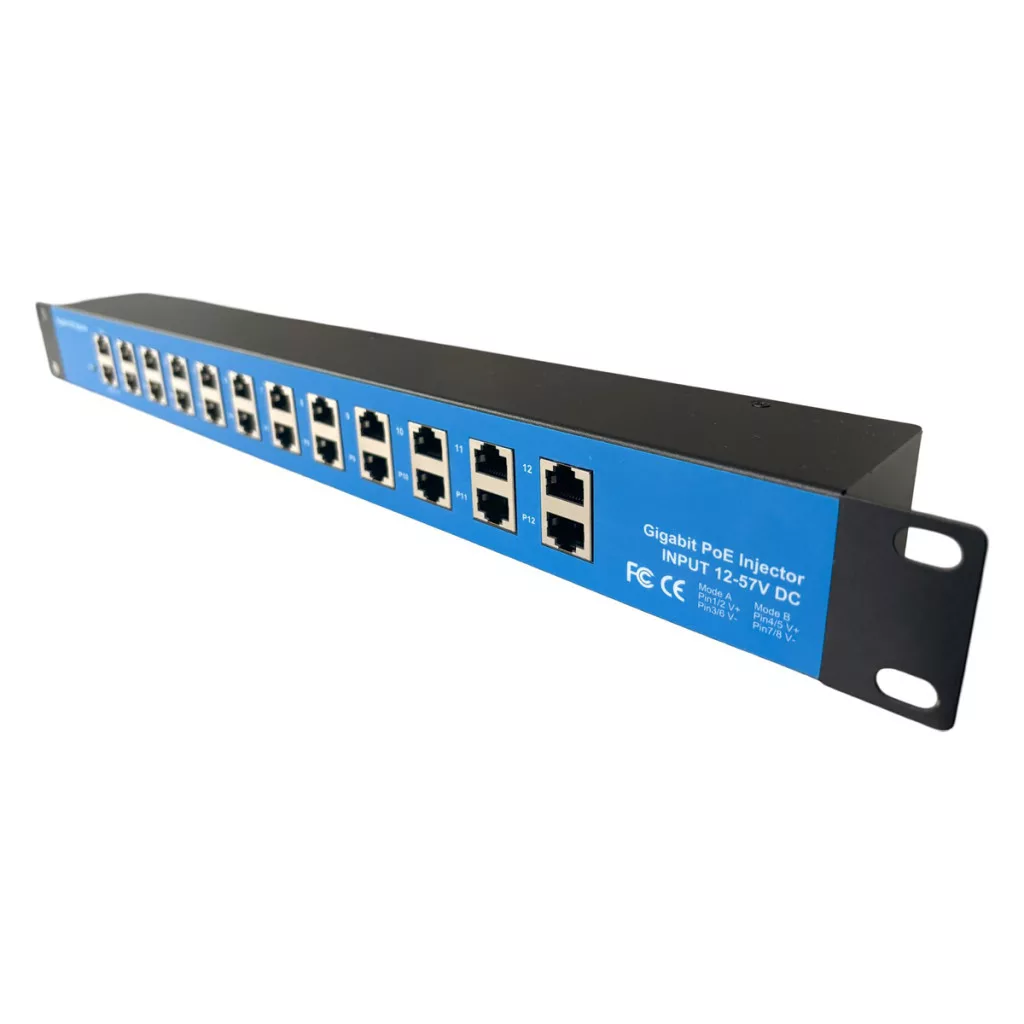

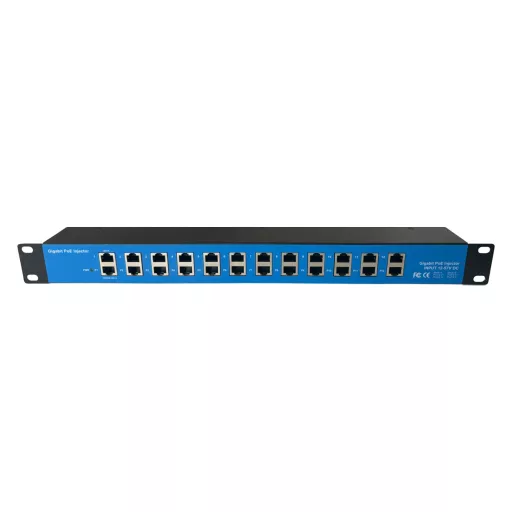

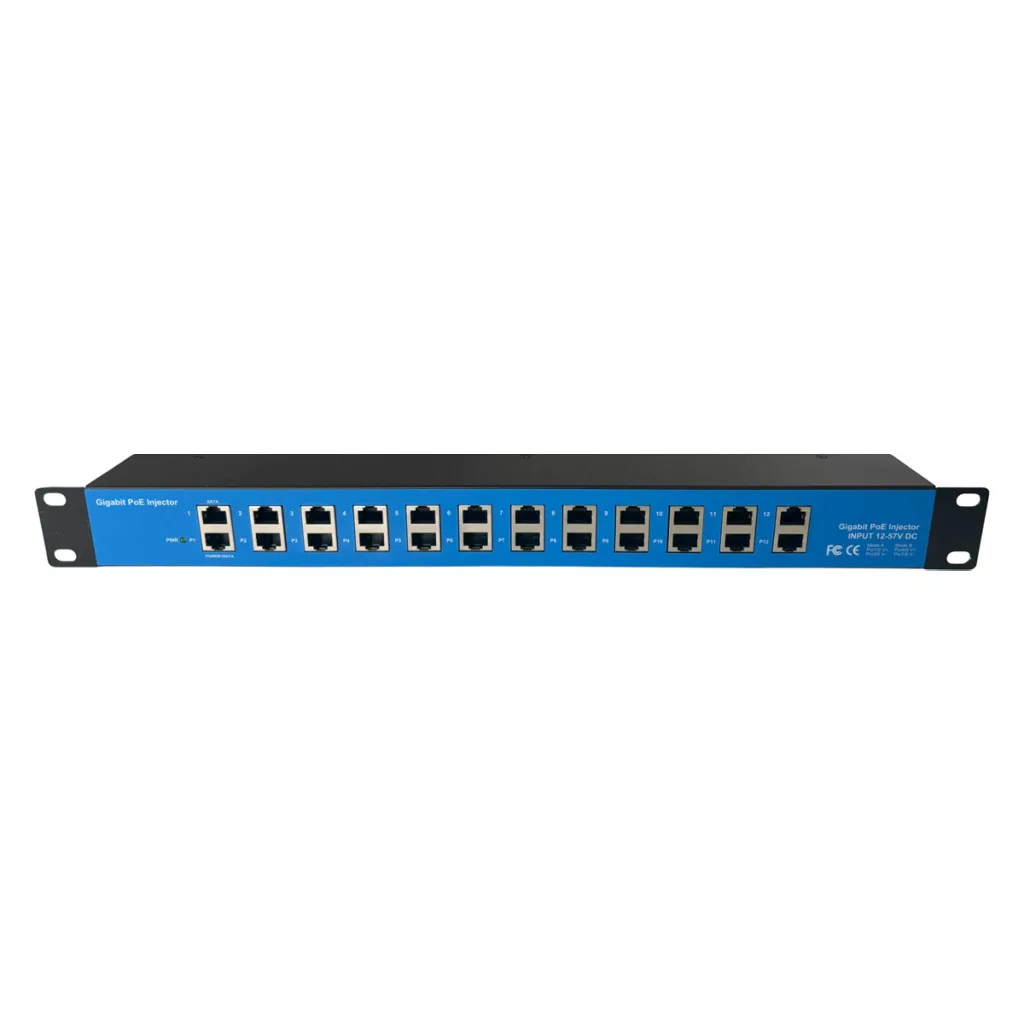

<p>Conexpro's passive Gigabit PoE rack panel enables power <b><ins>up to 12 devices</ins></b> with passive PoE support, ideal for active elements such as MikroTik or Ubiquiti Networks Wi-Fi units. The panel is adapted for installation in a <b><ins>19"" data rack</ins></b> (1U height). Each device is served via 1 data port and 1 port with a combination of data and power. On the back side are two power connectors (2.1/5.5 mm) for <b><ins>modes A and B</ins></b>.Input voltage range <b><ins>12-57 V DC</ins></b> with a limit of 1A per port and providing a total <b><ins>power of up to 300W</ins></b> with the appropriate power supply.</p>

<ul>

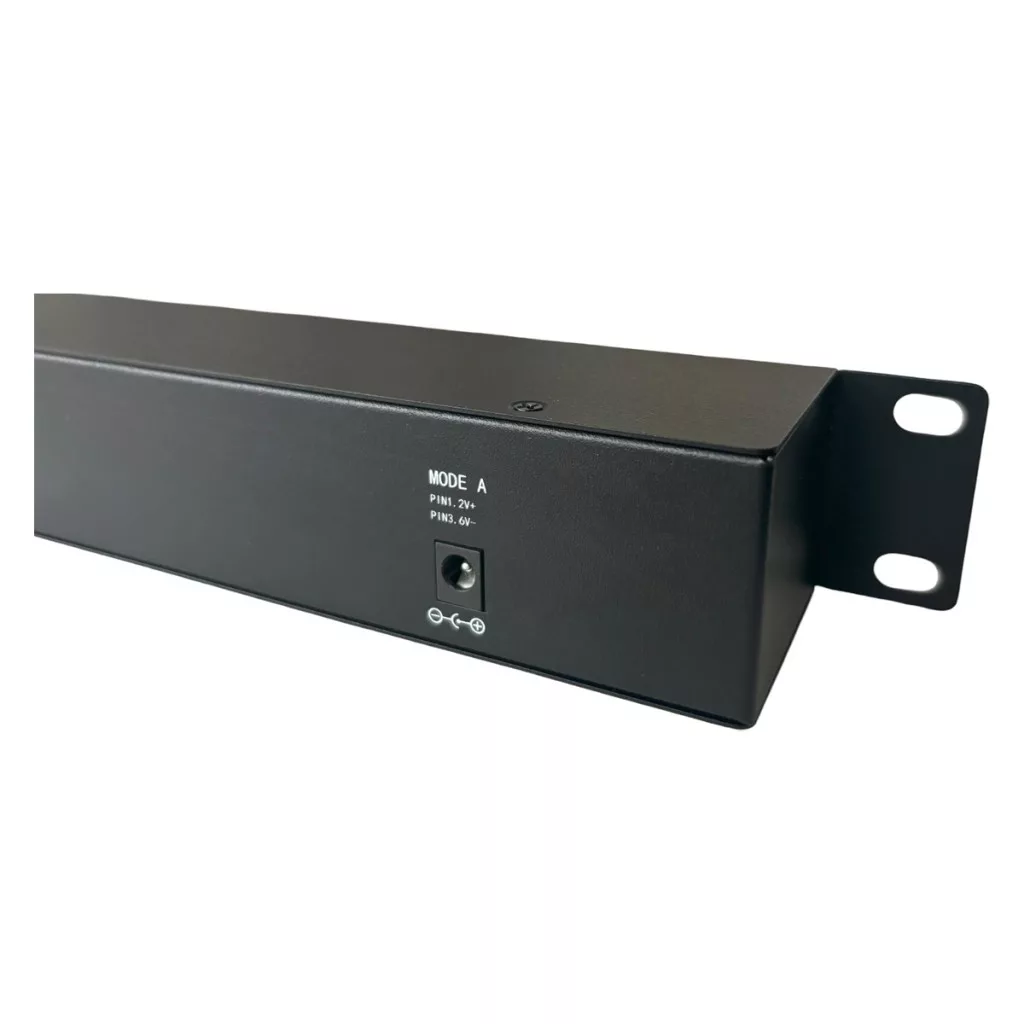

<li><strong><ins>Mode A</ins></strong>: Supports active devices powered via pins 1/2+ and 3/6-, such as IP cameras, IP phones, wireless units and other devices using power 802.3af/at.</li> standards

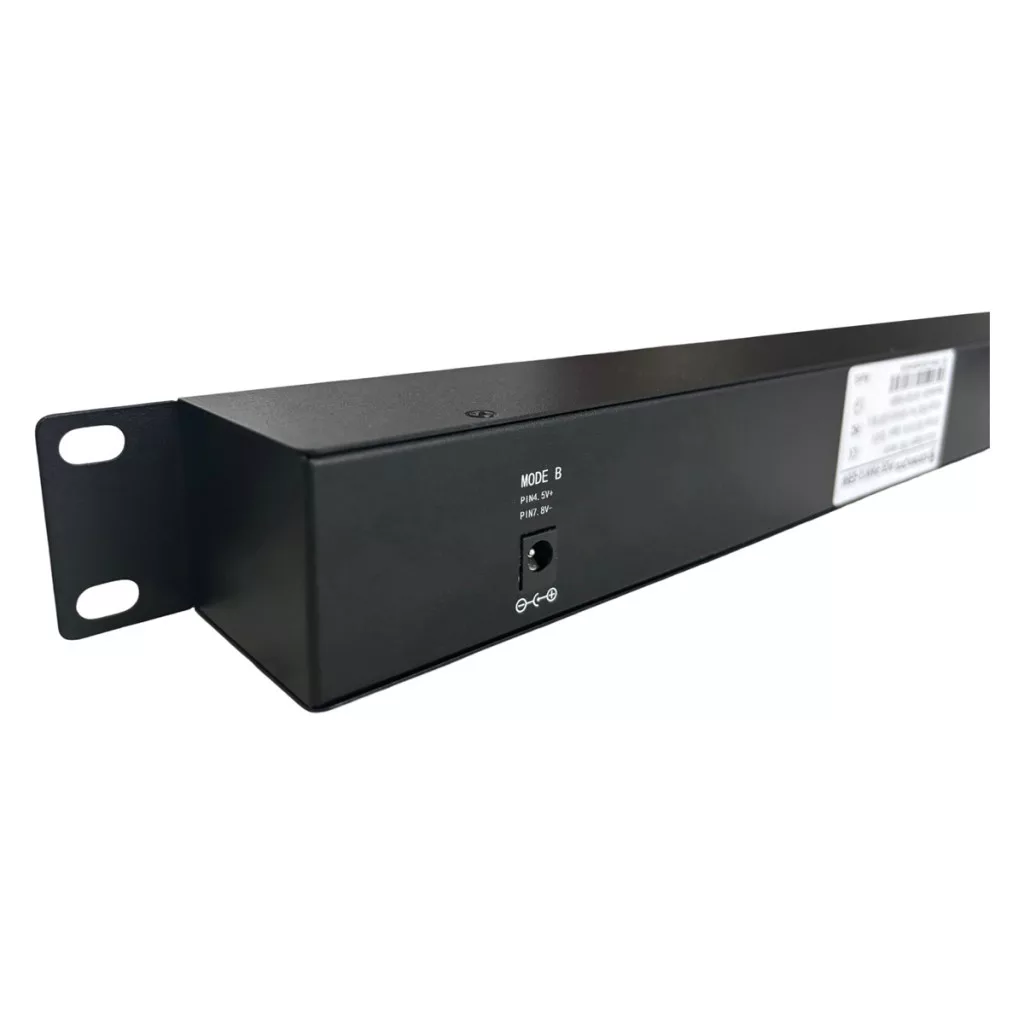

<li><strong><ins>Mode B</ins></strong>: Compatible with active devices that use pins 4/5+ and 7/8- for power, such as Ubiquiti Networks, MikroTik and others.</li>

</ul>

<p class=""info""><i>Before connecting a device, it is a good idea to verify that it supports power on the specific pins for which the power is connected - Mode A or Mode B, as incorrect connection can lead to the destruction of the connected device.</i></p>

<h4>Key Features</h4>

<ul>

<li>19"" rackmount version</li>

<li>12 ports with passive PoE support</li>

<li>LED light for indicating the power adapter</li>

<li>1A current limit on each port</li>

<li>2 input power connectors for mode A and B - standard jack 2.1 / 5.5 mm</li>

<li>Input voltage 12 - 57 V, maximum power 300 W</li>

</ul>
