Conexpro, passive Gigabit PoE rackmount panel, 16 ports

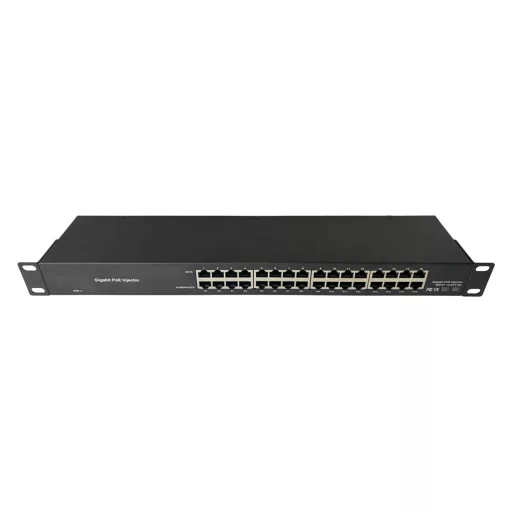

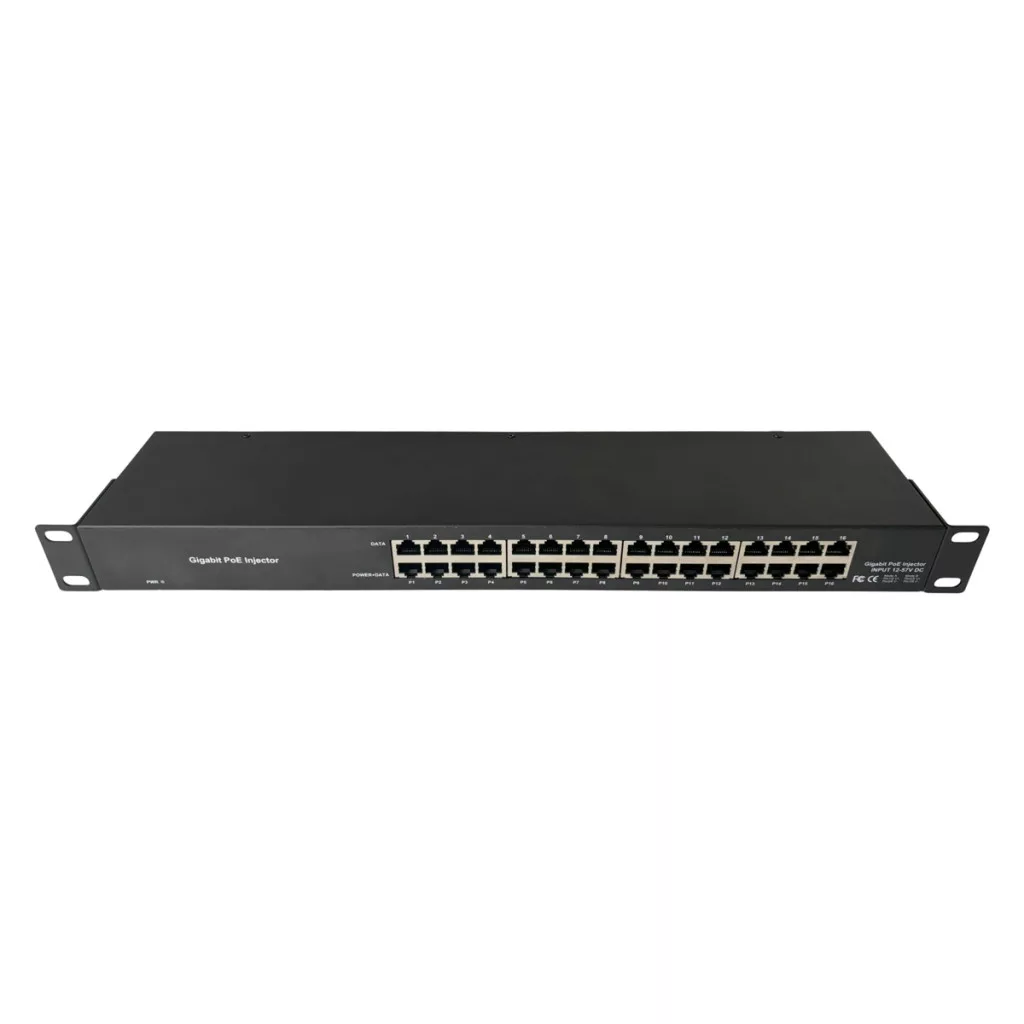

Conexpro's passive Gigabit PoE rack panel enables power up to 16 devices with passive PoE support, ideal for active elements such as MikroTik or Ubiquiti Networks Wi-Fi units. The panel is adapted for installation in a 19" data rack (1U height). Each device is served via 1 data port and 1 port with a combination of data and power. On the back side are two power connectors (2.1/5.5 mm) and terminal blocks for modes A and B.Input voltage range 12-57 V DC with a limit of 1A per port and providing a total power of up to 400W with the appropriate power supply.

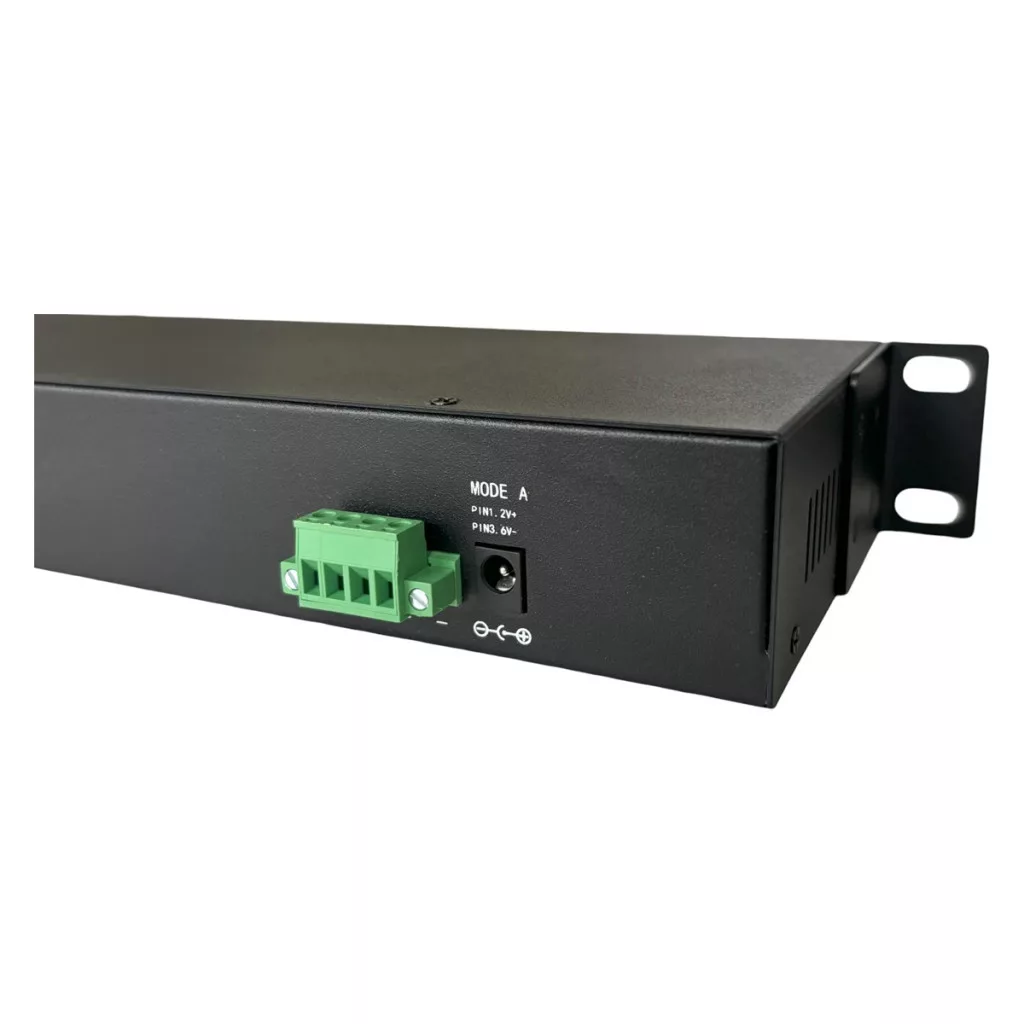

• Mode A: Supports active devices powered via pins 1/2+ and 3/6-, such as IP cameras, IP phones, wireless units and other devices using power 802.3af/at.
standards

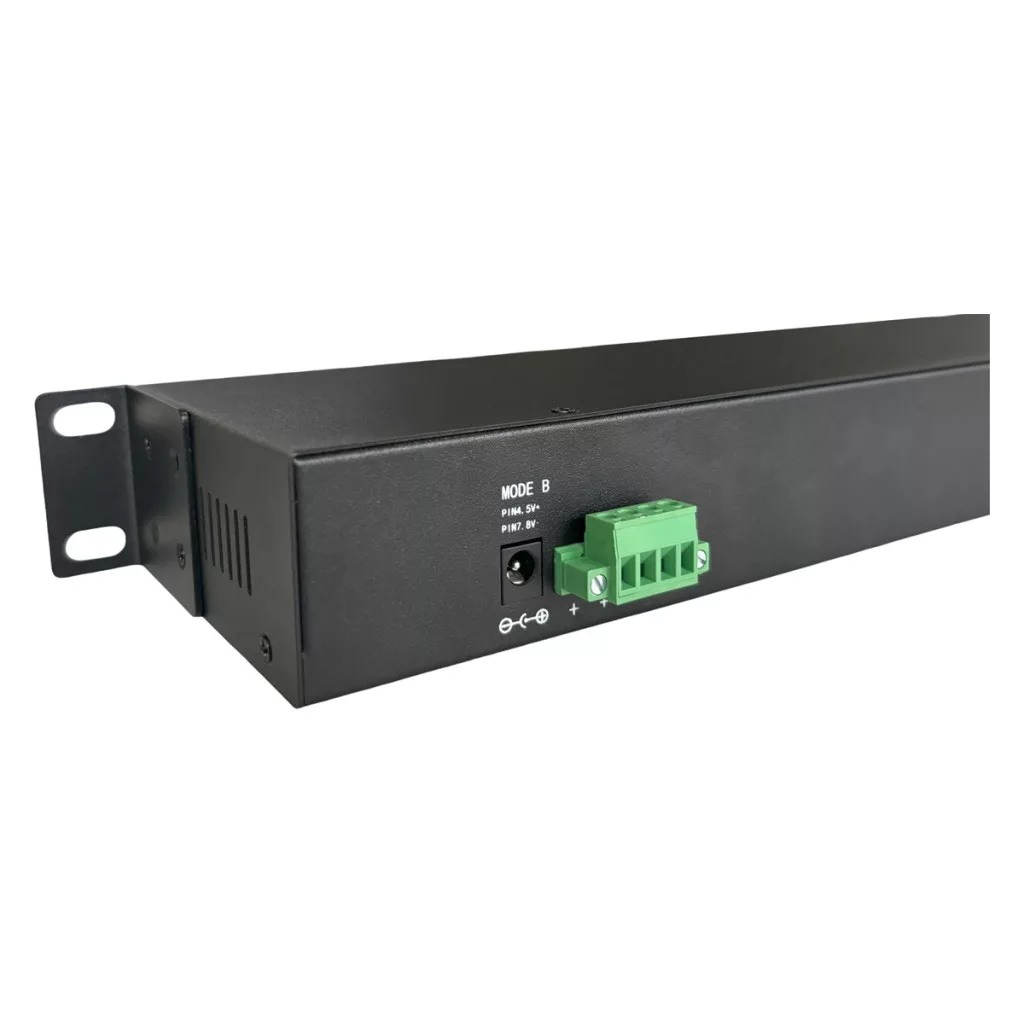

• Mode B: Compatible with active devices that use pins 4/5+ and 7/8- for power, such as Ubiquiti Networks, MikroTik and others.

Before connecting a device, it is a good idea to verify that it supports power on the specific pins for which the power is connected - Mode A or Mode B, as incorrect connection can lead to the destruction of the connected device.

Key Features

• 19" rackmount version
• 16 ports with passive PoE support
• LED light for indicating the power adapter
• 1A current limit on each port
• 2 input power connectors and terminal blocks for mode A and B - standard jack 2.1 / 5.5 mm
• Input voltage 12 - 57 V, maximum power 400 W
