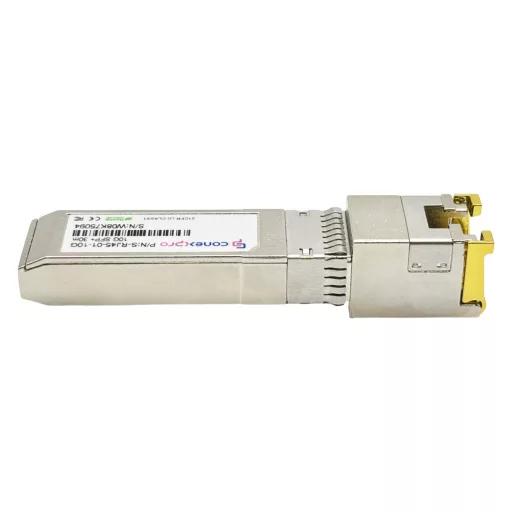

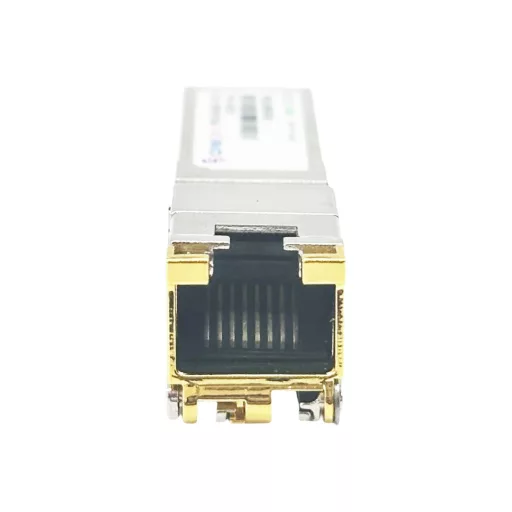

Conexpro, SFP+ copper module, RJ-45, 30m, 10Gbps, Marvell chip
A versatile 10-Gigabit SFP+ copper module from Conexpro with an RJ45 connector for use with copper cables, supporting data transfer speeds of 1G/2.5G/5G, and up to 10 Gbps. The module's reach is limited to
A versatile 10-Gigabit SFP+ copper module from Conexpro with an RJ45 connector for use with copper cables, supporting data transfer speeds of 1G/2.5G/5G, and up to 10 Gbps. The module's reach is limited to 100 meters for lower speeds, while at higher speeds, including 5 Gbps, it is reduced to 30 meters. For optimal performance, we recommend using higher-grade cables such as Cat 6A or Cat 7. This module is primarily designed for optical switches lacking copper ports. The Marvell chip provides enhanced compatibility and stable 1 Gbps performance.
| Speed | Cable Standard | Range [m] |
|---|---|---|
| 1 Gbps | Cat 5E | 100 m |
| 2.5 Gbps | Cat 5E | 100 m |
| 5 Gbps | Cat 6A, Cat 7 | 30 m |
| 10 Gbps | Cat 6A, Cat 7 | 30 m |
