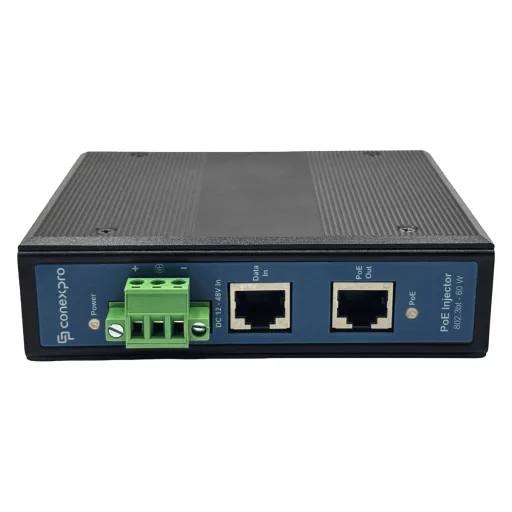

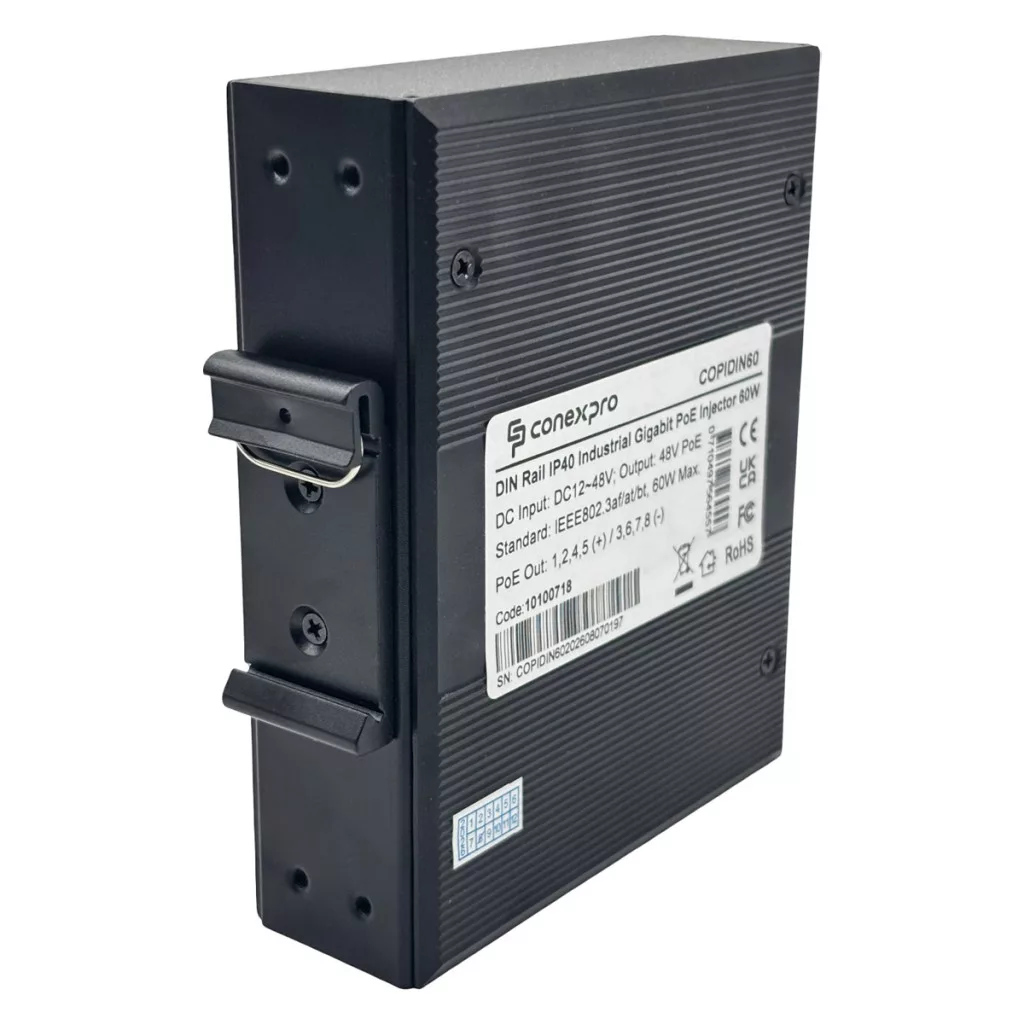

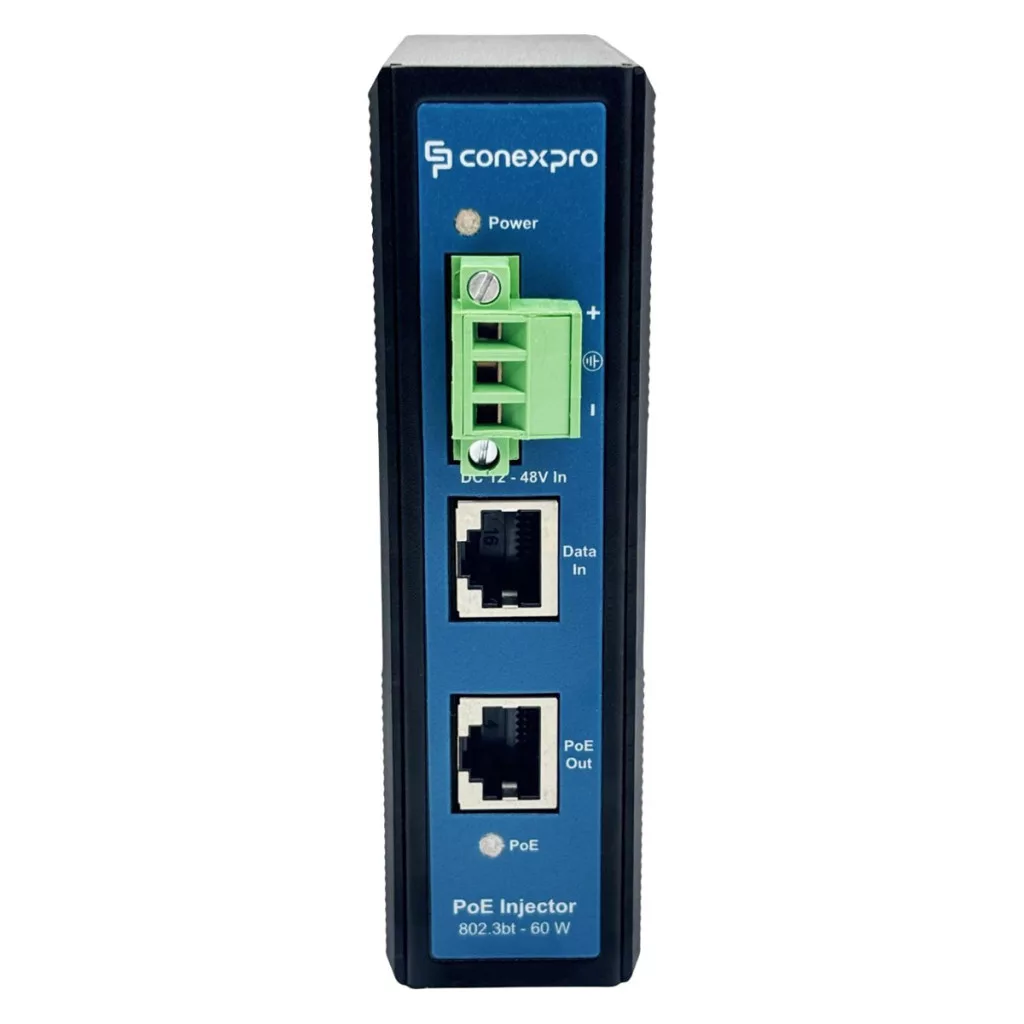

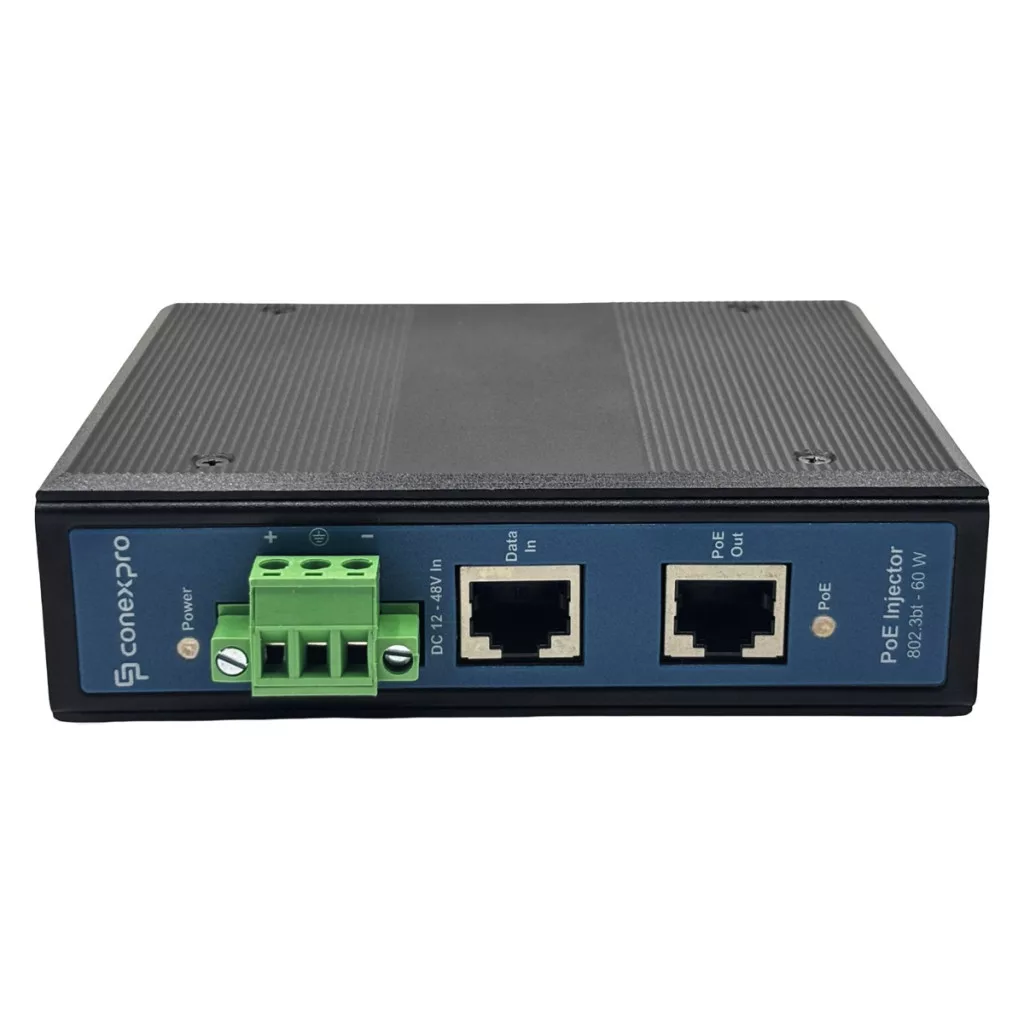

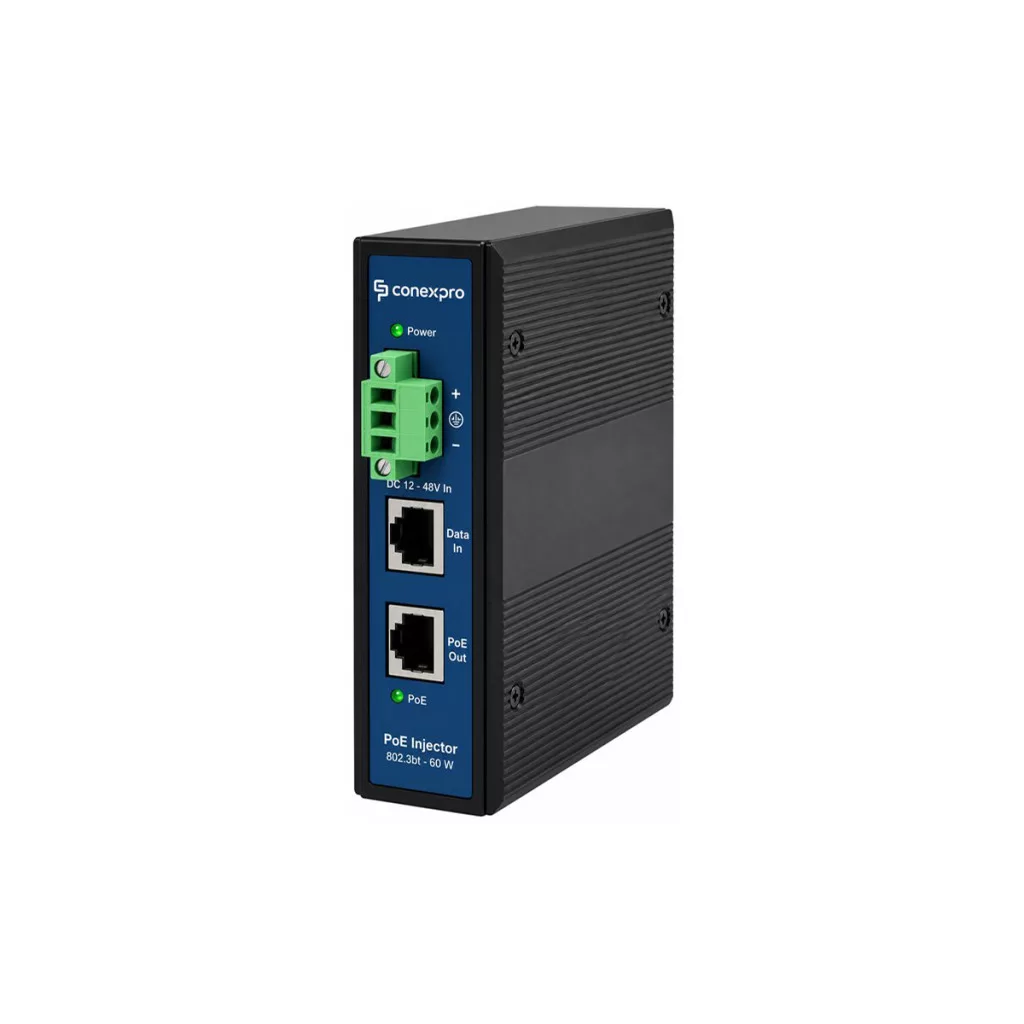

Conexpro, Gigabit PoE injector for DIN rail, input 12-48V DC, 802.3af/at/bt, 60W
The active Gigabit PoE injector with DIN rail mounting is designed to power devices supporting standards 802.3af/at/bt (up to 60W) . It operates with a input voltage of 12 to 48 V DC and, thanks to the
The active Gigabit PoE injector with DIN rail mounting is designed to power devices supporting standards 802.3af/at/bt (up to 60W). It operates with a input voltage of 12 to 48 V DC and, thanks to the built-in DC/DC converter, provides a stable PoE output of 48 V. Data is supplied through a separate Gigabit LAN port, while the second Gigabit port ensures data transmission and power supply. PoE is conducted over pins 4,5 (+) and 7,8 (-), with a maximum output current of 1.25 A.
The PoE injector is the ideal solution for installations with central DC power supply, for example, in industrial control cabinets, photovoltaic systems, or telecommunications applications. It enables reliable powering of WiFi access points, IP cameras, wireless links, and other network devices with PoE.
