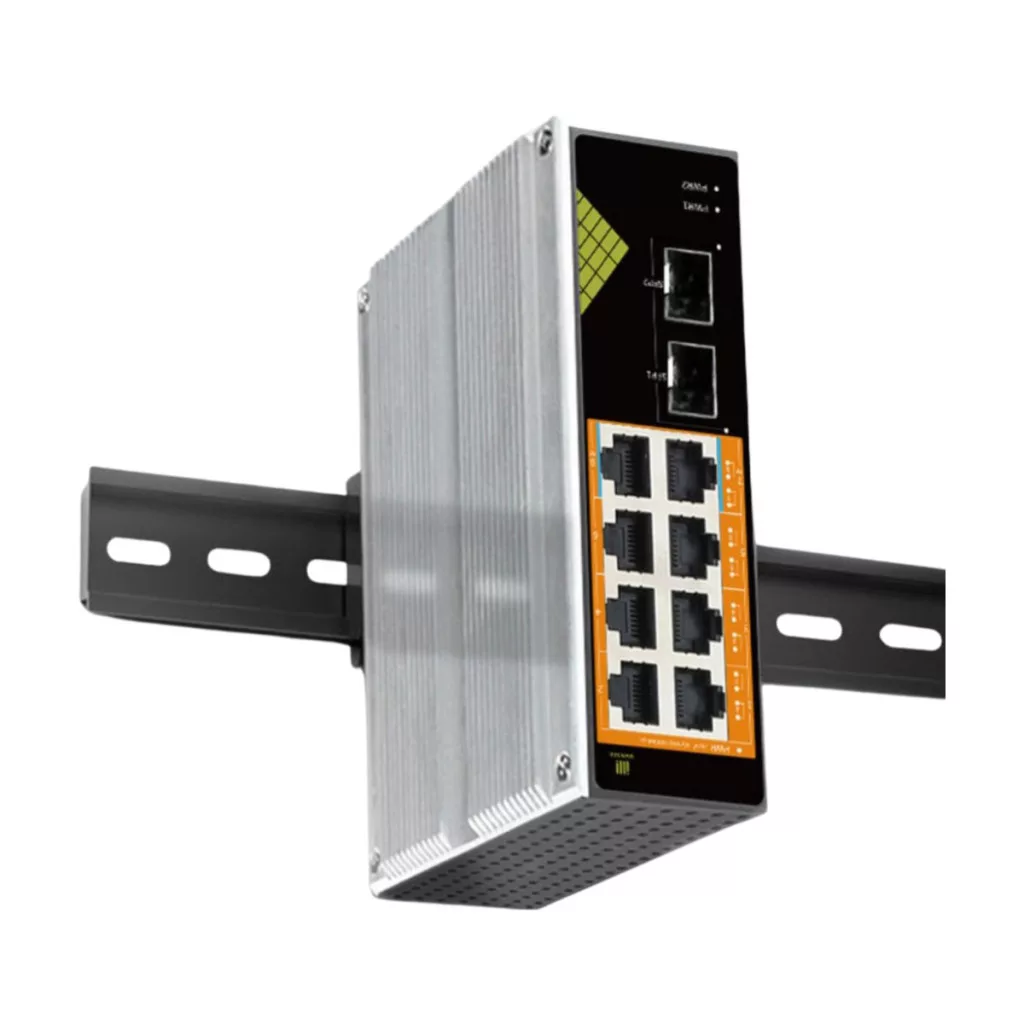

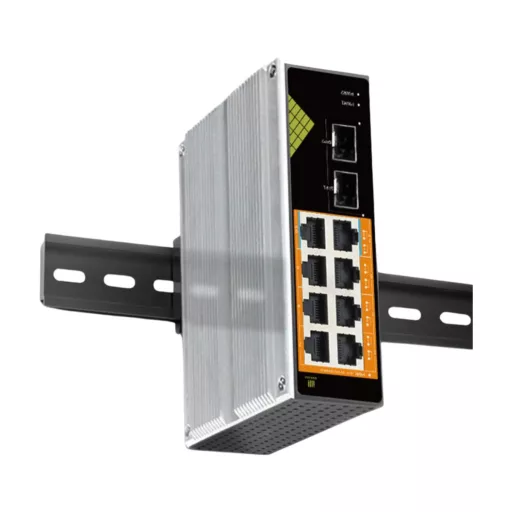

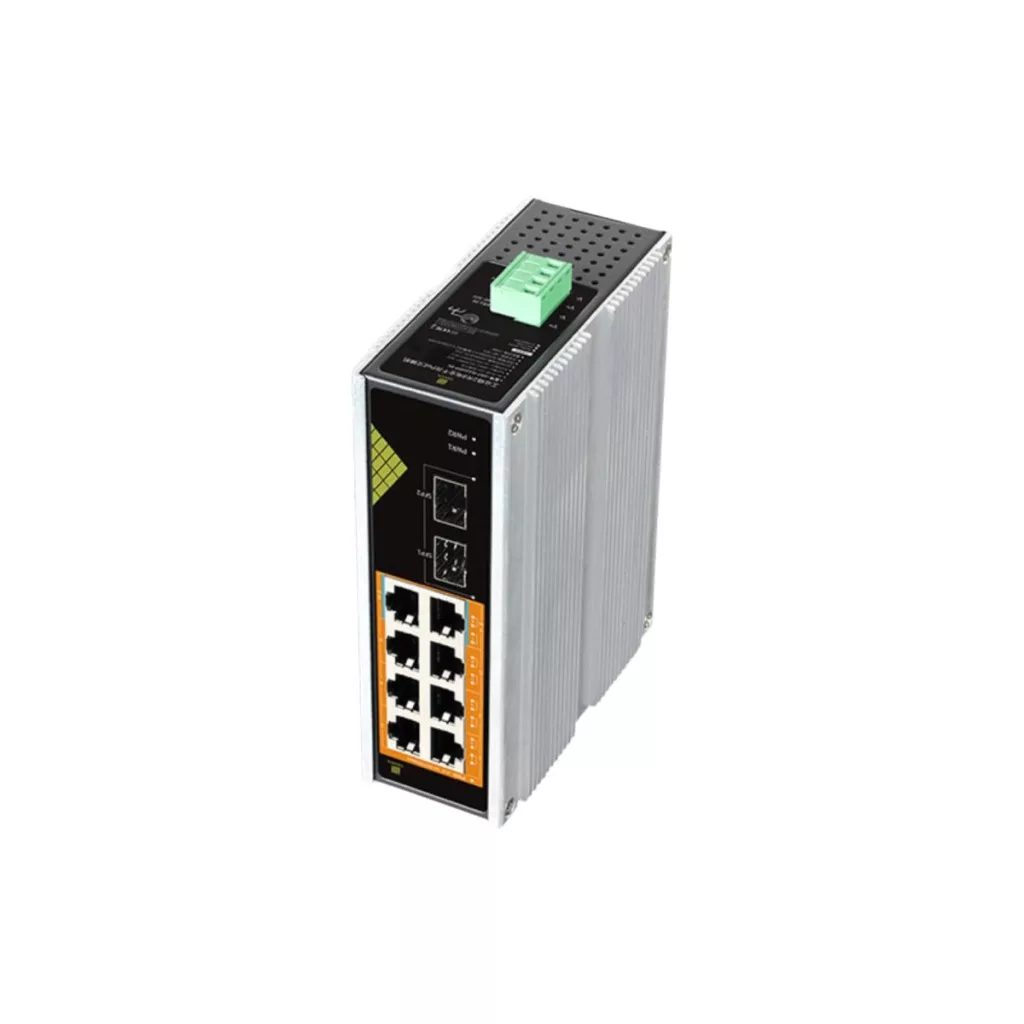

Conexpro, GNT-IG1210FP-DC, Industrial PoE switch for DIN rail, 8x LAN, 8x PoE, 2x SFP

Gigabit PoE switch in metal industrial design with installation on a DIN rail, without management with 8x Gigabit LAN ports and two optical SFP ports is a device for powering cameras, VoIP, Wi-Fi and is intended for the harshest conditions such as production halls, attics and outdoor switchboards. The Switch offers quiet fanless operation, 8x 10/100/1000 Mbps of which all 8 ports support the PoE function (802.3af/at, 30W/port, port no. 7 and 8 even supports 802.3af/at/bt - 60W/port) with a total PoE budget of 130W and power supply via 2 independent DC inputs with redundancy with a voltage of 48 to 52V DC.

Key Features

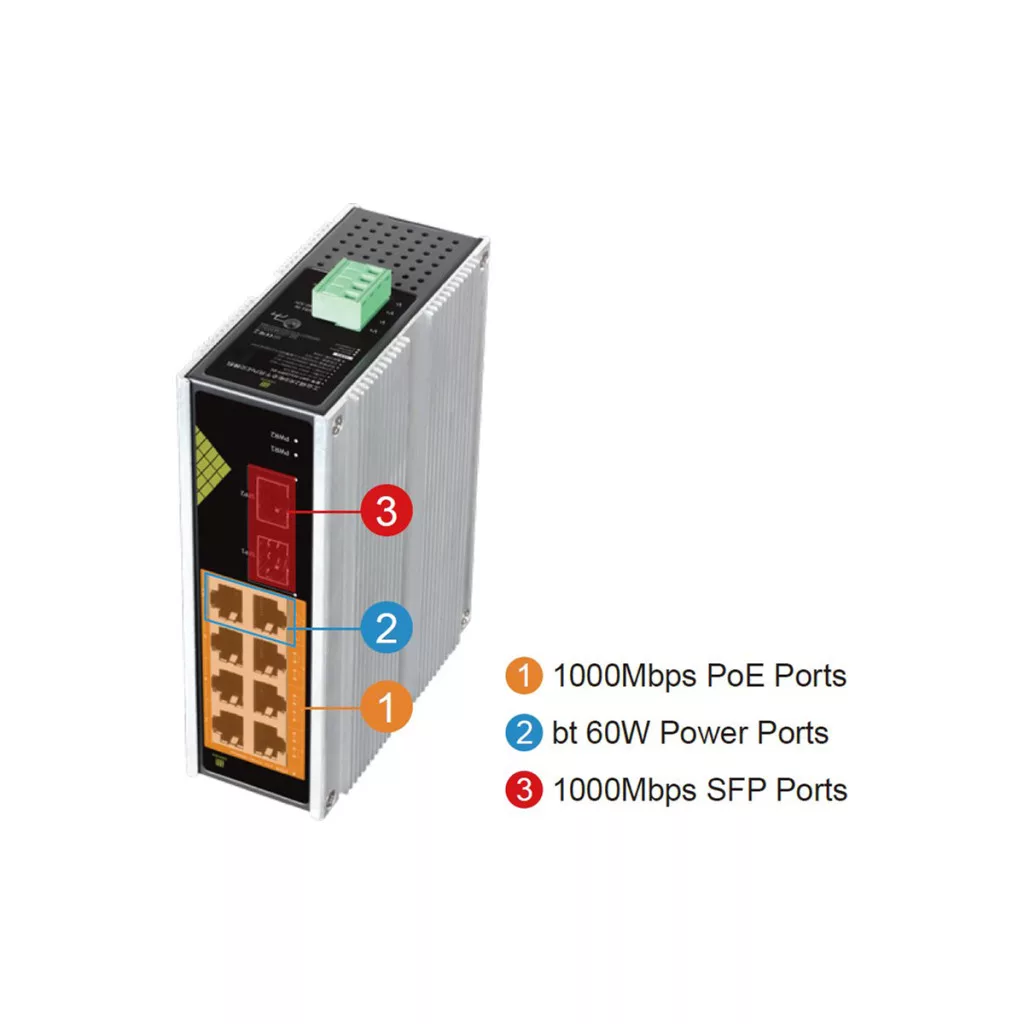

• (8) 10/100/1000 Mbps LAN + (2) Gigabit SFP
• Power supply via 2 DC inputs 48 to 52V, redundancy
• (6) 802.3af/at PoE (30W/port) + (2) 802.3af/at/bt PoE (60W/port)
• PoE budget 130W
• Robust industrial metal chassis

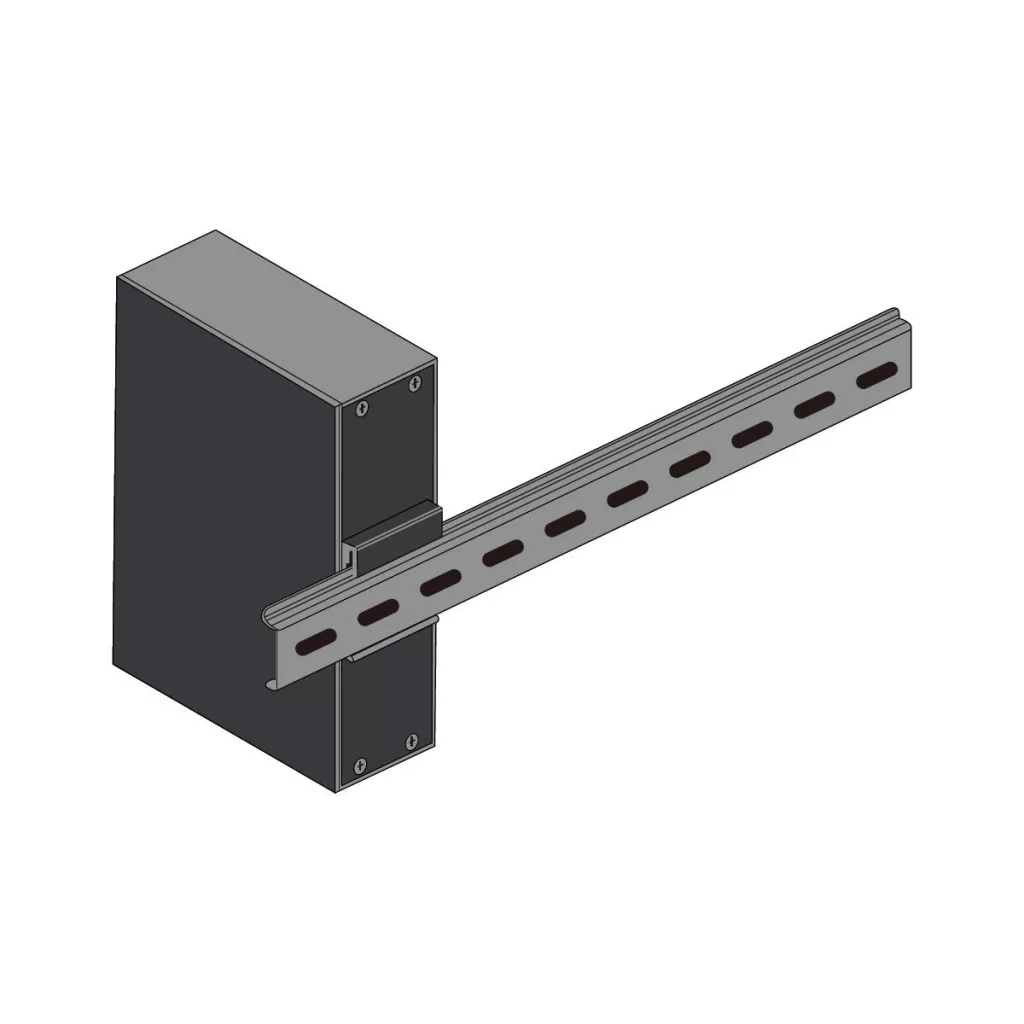

• DIN rail mounting
• Silent operation without fans
• Operating temperature -40 to 70°C
• Dimensions 51 x 145 x 110mm

Package contents

• Device
